LED Strip Pre-Drilled Black U Channel Diffuser 10-Pack 3.28FT,Surface Mounted Tape Light Aluminum Track with Continuous Silicone Cover. Flush Installed Low Profile (Black, 10X3.3FT)
$42.90
Price: $42.90
(as of May 31, 2025 08:40:24 UTC – Details)
Product Description
3.28FT Pre-Drilled Countersunk Hole LED Strip White U Channel Diffuser
THMOOTHER Is Specializing in LED Strip Channel Diffuser ,THMOOTHER Channel ,Smoother Light

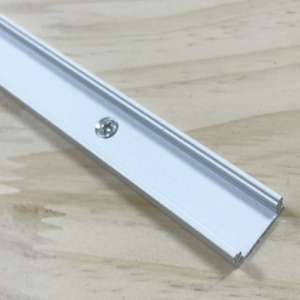

1. 4 Countersunk Hole on Each Channel in 3.28FT

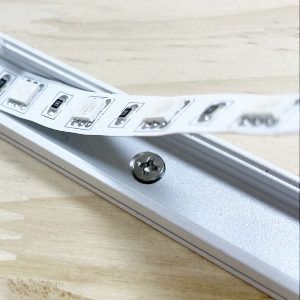

2. M3 Screw Flush Mounted In The Channel Without Salient Point
3. Mounting Clips is not Needed ,Avoid Scratchs by Clips on Channel .
4. Concealed Installation , More Professional and Better Outlook
For Diffusion Effect ,It depens on the intensity of the diode and the height of the Channel .
Since This is a Low Profile ,It is Hard to Get a Spotless Or Neon Effect Unless the Intensity is 180 LED/M or More or With COB LED Strip
45 Degree Mitre Is Supposed For Corner Connection

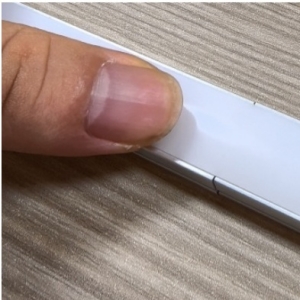

The Diffuser Can Overlap All The Channel In The Package To Create a Real Continuous Lighting Effect
The Milky Cover With a Good Balance Between Light Transmittance and Aesthetics (The Testing Strip Above is 240LED/Meter Which is Not Included)
1.Flexible and Without Break Point( For Instance :10-Pack 3.3FT Channel With a Continuously 33FT Diffuer )
2. 85% Transmittance Rate
3. The Diffuser Is Easily Snapped Into The Channel and Pressed From The Side To Stay Firmly In the Track .
4. The Cover Can Be Cutted By Angle Scissors For Corner Connection
When It Comes to Spotty/Dotty LED Effect, People Often Think a Diffuser Will Solve this Outright. But That Is Not True ,Diffusion Effect Depends
on 2 Things:
1. The Number Of LEDs Per Meter
2. The Depth of The Profile
Hence When Using LED Tapes Such As Those Which Only Have 30 LEDs Per Meter, No Amount Of Diffuser is Going To Make It Looks Seamless. If This Effect is Desired, We Recommend High Intensity Diode Like 180 LED Per Meter Or More For a Spotless Constant Glow .Powerful LED Strip Or RGBIC ,RGBW Tape Will Also Have A Better Diffusion Effect .
Package Details

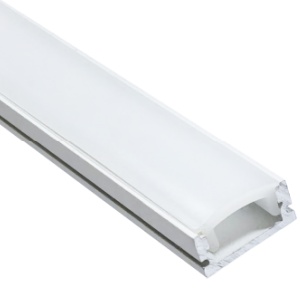

U Shape Channel With Continuous Silicone Cover
Width : 0.69”
Height : 0.28”
Fit For LED Strip Within 0.5” Width
Thickening Track ,Up To 108g/3.28FT .Professional Housing and Heat Radiator for LED Strip Light
Black/Silver/White Color Available
The Cover Is Flexible and Continuous
Screw And Wall Anchor – 4 Sets Per Channel In 3.28FT
M3X12MM Stainless Steel Screw ,Steady Installation For Cabinet and More Durable In Mositure Enviroment Like Kithcen
M3X20MM Carbon Steel Magnetic Screw With Wall Anchor is Supplied For Wall Application

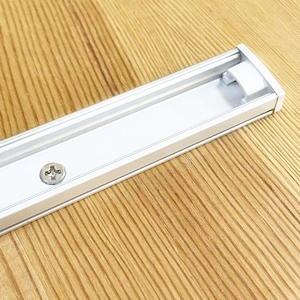

End Caps-1 Set Per Channel In 3.28FT
Anti Light Leak Design
2 Caps Per Set ( 1 With Hole, 1 closed )
The End Hole Can be Expanded
The End Cap Is White For Silver/White Channel Black for Black Channel
Steps To Install The Channel
1. Screw In the Channel On the Working Surface
A Pilot Hole Is Suggest For Rigid Surface
Measure and Mark the Point for Screw Before the Installation. Flush End To End Connection For Extension
2.Paste The Strip in The Channel
Make Sure That the Tape Light is No more Than Half a Inch ,It Fit For Majority of Strips (Not Fit Philips Hue 2 nd ).
3.Snap Cover Into Channel and Press From 1 End to Another
Flush End to End the Cover and Track ,Snap the Cover Into the Channel and Press From 1 End to Another to Install The Diffuser.
Add to Cart
Customer Reviews
4.5 out of 5 stars 405
4.2 out of 5 stars 9
4.8 out of 5 stars 82
4.6 out of 5 stars 58
4.5 out of 5 stars 56
Price
— no data
— no data
$39.90$39.90
— no data
— no data
Color
Silver Silver Silver Black Silver
Size
16X16MM 17.4X7MM 24.7X7MM 17.4X7MM 17.4X7MM
Strip Width
With in 12MM With in 12MM With in 12MM With in 12MM With in 12MM
Length
3.28FT 6.56FT 3.28FT 3.28FT 6.56FT
Package Dimensions : 40 x 3 x 3 inches; 4 Pounds
Item model number : 1707-DK-GJ
Date First Available : May 15, 2025
Manufacturer : Zhongshan Guangzhilin Lighting Technology Co., Ltd
ASIN : B0F8QMZ8GR
Country of Origin : China
Pre-Drilled Countersunk Hole (4 Hole/3.3FT) , Tight Fit and Flush Mounted ,Protect the Profile from Scratch by The Mounting Clips ,Easy Installation, Clean Outlook and Professional Extension
Silica Gel Milky Diffuser is Easily Snapped Into the Channel, It Does Not Only Protect the Exposed Strip From Dust and Moisture but Also Evening and Smooth Out the Lights Well .The Diffuser Is In Whole Length Without Break Between 2 Tracks
The Channel Can be Trimmed to Required Length Easily by Hacksaw or Grinder,the Cover Can be Cut by Utility Knives and Scissors, The Bracket Can be Used As Extension Connector ,45 Degree Mitre is Supposed For a 90 Degree Corner .
The Aluminum Track is Designed to Hold the Strip Less Than 12.4mm(0.49’’) Wide Without Salient Point ,It Fit for Vast Majority of 5050 5630 2835 Steady Color ,RGB ,RGBW and Programmable Tape(Not for Hue 2nd)
The Package Include Black Aluminum Channel 3.28FTX10,Milky Flexible Cover X32.8FT ,M3X12/M3X20 Screw And Wall AnchorX40 .End Caps With Hole X10,End Caps Without Hole X 10
