Dimmer Control 6-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO/N/O Train Model. OONO D-1660BP

Price: $15.99
(as of May 15, 2025 13:30:10 UTC – Details)

Product Description

CZH-LABS OONO D-1660BP

Dimmer Control 6-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO / N / O Train Model. OONO D-1660BP

Dimmer Control 6-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO / N / O Train Model.6 channels dimming output, each channel can be independently adjusted and controlled. All channel can support direct-connected LEDs, or LEDs with resistors in series. Using linear current control circuit, there is no stroboscopic problem of switching circuit to protect your eyesight.Support AC or DC power supply input, AC 5-18V or DC 5-24V. Each channel adjustable maximum current output 30mA(DC24V) / 20mA(DC18V) / 12mA(DC12V), minimum current 0mA(LED goes out completely).Support external switch to control the on/off of all channels of this module, of course, you can also use it directly by short-circuit.Dual power input terminal blocks facilitate the expansion of power supply wiring to multiple modules, making your wiring look neater and simpler.UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screws: 304 stainless steel, you can easily mount it on a wooden board.

.

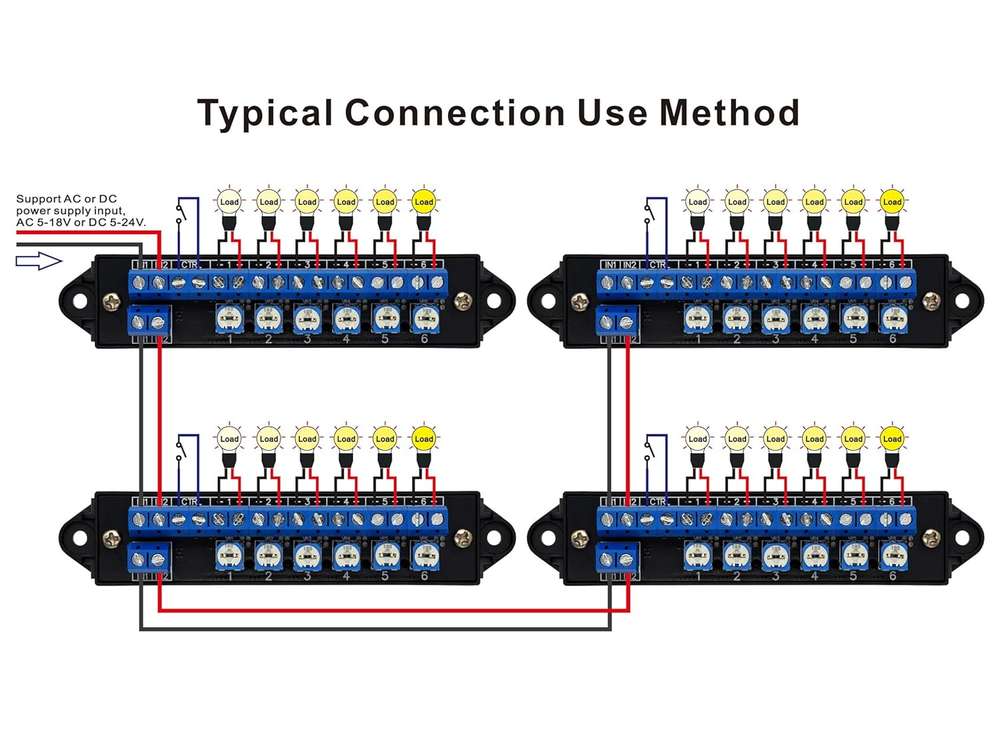

Typical connection usage:

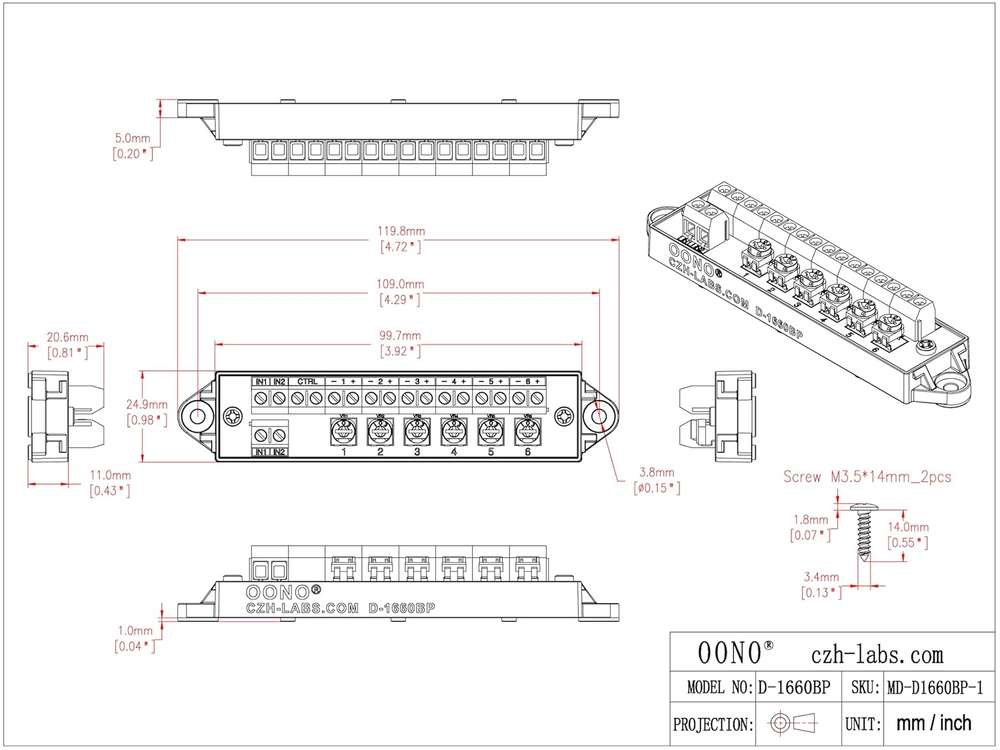

Product Dimensions ‏ : ‎ 4.72 x 4.72 x 0.81 inches; 2.24 ounces
Item model number ‏ : ‎ D-1660BP
Date First Available ‏ : ‎ March 21, 2025
Manufacturer ‏ : ‎ CZH-LABS
ASIN ‏ : ‎ B0F26BFR7W

Dimmer Control 6-Lights LED Hub Distribution Module, AC/DC 5 to 24V Input, for HO / N / O Train Model.
6 channels dimming output, each channel can be independently adjusted and controlled. All channel can support direct-connected LEDs, or LEDs with resistors in series. Using linear current control circuit, there is no stroboscopic problem of switching circuit to protect your eyesight.
Support AC or DC power supply input, AC 5-18V or DC 5-24V. Each channel adjustable maximum current output 30mA(DC24V) / 20mA(DC18V) / 12mA(DC12V), minimum current 0mA(LED goes out completely).
Support external switch to control the on/off of all channels of this module, of course, you can also use it directly by short-circuit.
Dual power input terminal blocks facilitate the expansion of power supply wiring to multiple modules, making your wiring look neater and simpler.

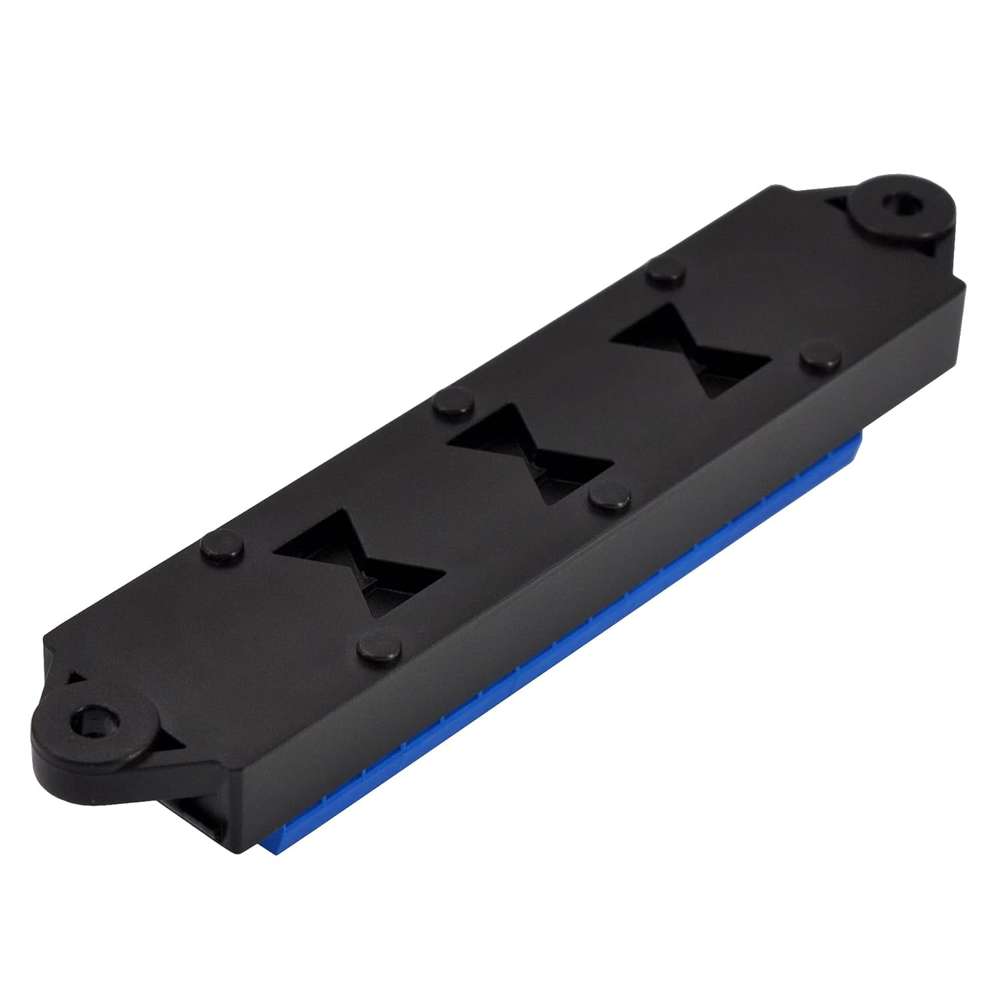

UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screws: 304 stainless steel, you can easily mount it on a wooden board.
