BTF-LIGHTING PIR Sensor Stair Light ES32 Controller Kit 3X16FT Custom FCOB LED Strip Length Fits All Widths of Stairs DC24V 3000K CRI 90+ 8mm Width Dimmable Uniform Light Multiple On and Off Modes

Price: $145.99
(as of May 18, 2025 17:12:18 UTC – Details)

Product Description

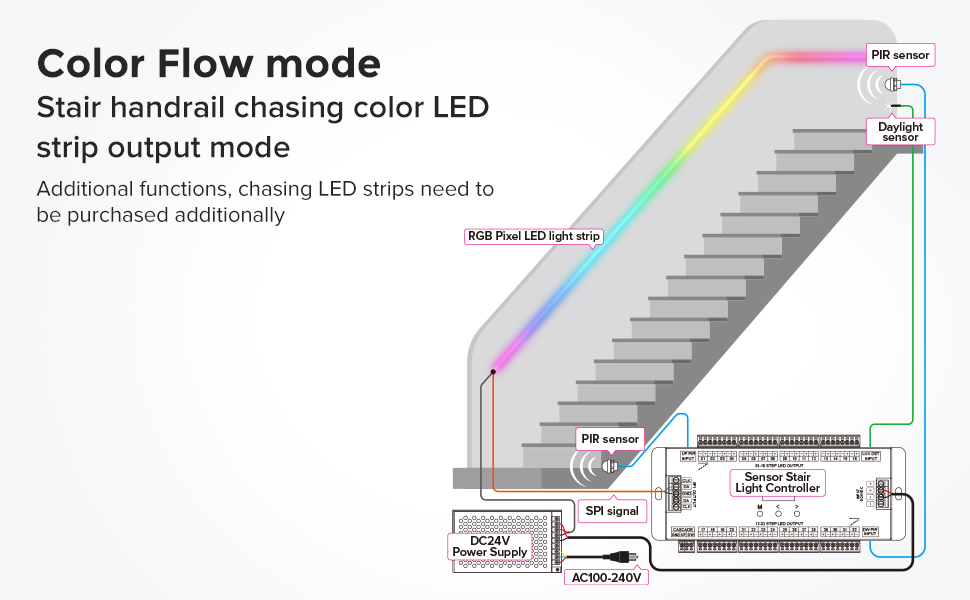

Support Stair Handrails Chasing Color IC Chip LED Strip

Please note ： The RGB IC chip chasing light strip needs to be purchased additionally .Recommended DC24V WS2811 RGB LED Strip （B07X42467V）. Stair handrails light up the rainbow chasing effect.Recommended DC24V WS2811 IC FCOB Warm White LED strip （B0BNDTZFDB）. Stair handrails light up the 3000K Warm White chasing effect.Also support this kind of IC chip LED strip :WS2811, WS2812B, WS2813, WS2815, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1829, TM1914A, GW6205, GS8206, GS8208, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.

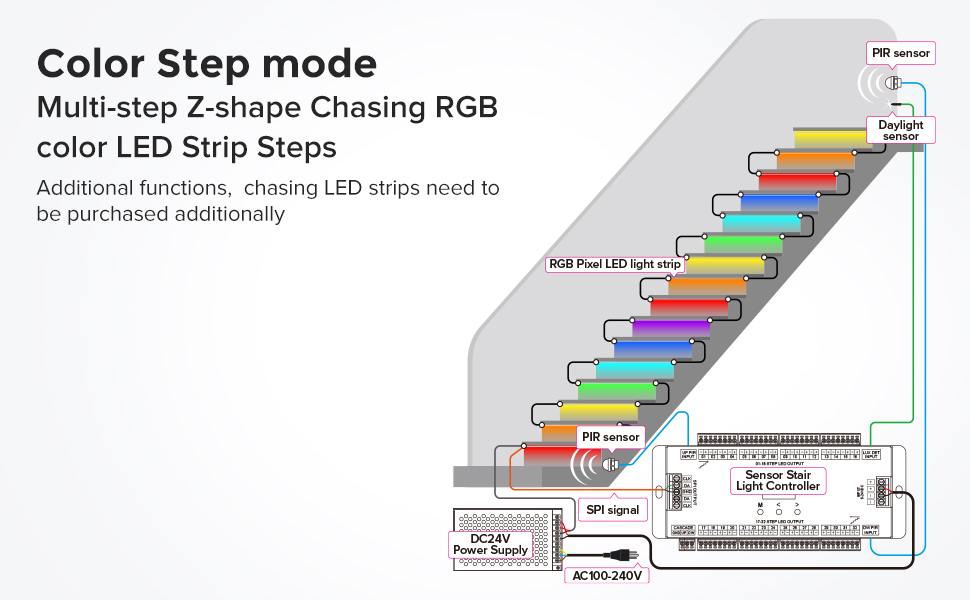

Z-shape Chasing RGB LED Strip Steps

Please note ： The RGB IC chip chasing light strip needs to be purchased additionally .Recommended DC24V WS2811 RGB LED Strip （B07X42467V）. The steps light up the rainbow chasing effect.Also support this kind of IC chip LED strip :WS2811, WS2812B, WS2813, WS2815, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1829, TM1914A, GW6205, GS8206, GS8208, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.

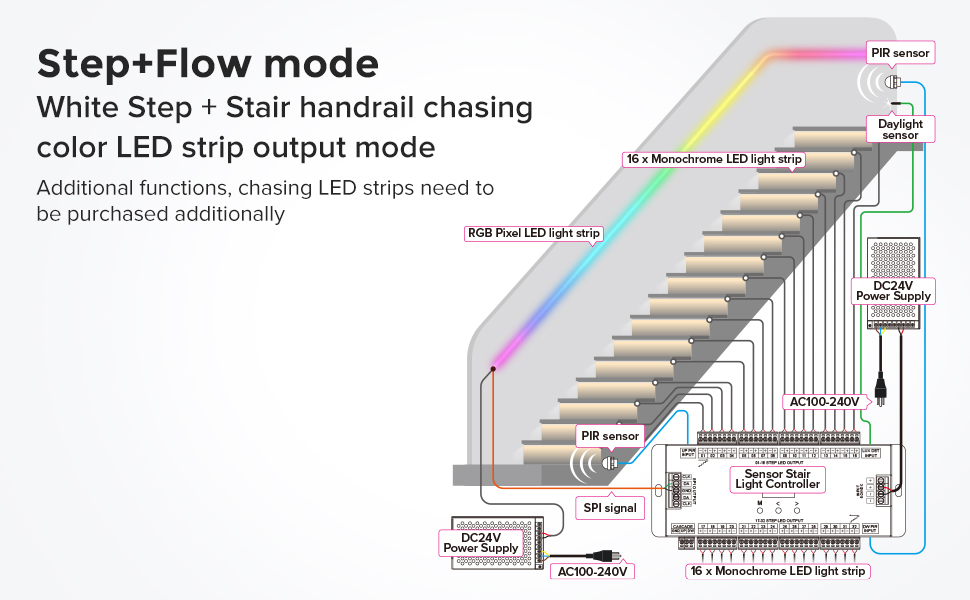

Stair Handrails Chasing Color IC Chip LED Strip+White Light Steps

Please note ： The RGB IC chip chasing light strip needs to be purchased additionally .Recommended DC24V WS2811 RGB LED Strip （B07X42467V）. Stair handrails light up the rainbow chasing effect.Recommended DC24V WS2811 IC FCOB Warm White LED strip （B0BNDTZFDB）. Stair handrails light up the 3000K Warm White chasing effect.Also support this kind of IC chip LED strip :WS2811, WS2812B, WS2813, WS2815, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1829, TM1914A, GW6205, GS8206, GS8208, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.

Support IC Chip SPI LED strip

Each one can control 32 steps Max Cascade can control 64 steps max

Package content：

1x PIR Sensor Stair Light Controller（1x Daylight sensor（11.8in） .2x PIR sensor 2x PIR sensor extension cable（16.4FT）1x LED Controller 1 x User manual）. 3x FCOB Warm White 16.4ft LED strips. 35x DIY Connectors. 50x Fixed Clips. 3x 32FT 2PIN cables. 1x 3Prong Power Cord. 1x DC24V10A 240W Power Adapter. 2X User Manual.Please note that there is no chasing IC chip light strip in this package .

PIR Sensor Stair Light Kits

Specification:

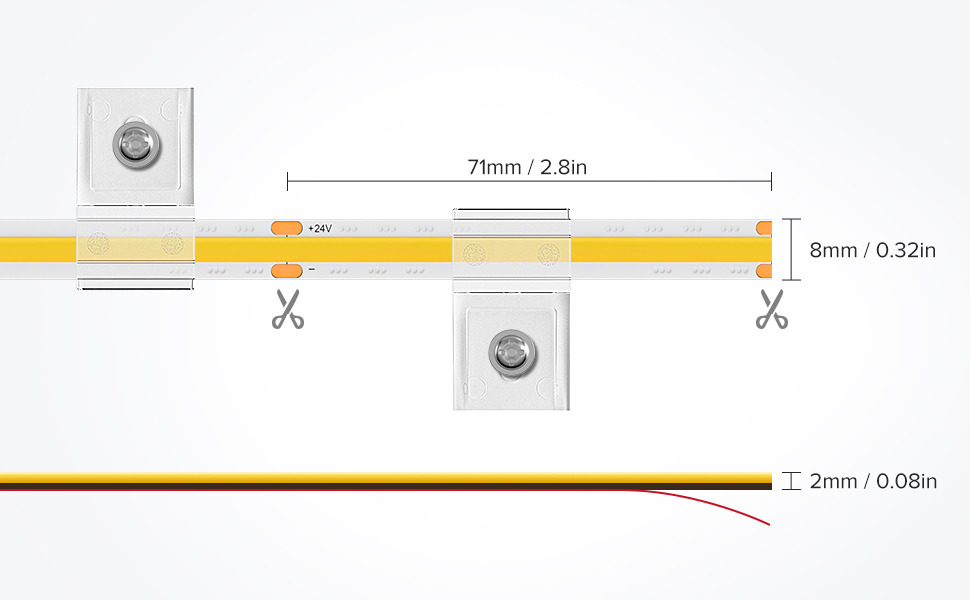

LEDs Type: FCOB Flexible Chip On Board LED StripInput Voltage: DC24VLED Quantity : 336LEDs/mRecommend power supply: DC24V10ATotal length: 3x 16.4FT（5m）/ rollFPCB width: 8mmView angle: 180°Color Rendering Index: CRI＞90Waterproof level: IP30 Non-waterproofColor temperature: Warm white(3000K); Operation temperature: -20℃-+45℃

Package Dimensions ‏ : ‎ 13.23 x 10.87 x 5 inches; 4.7 Pounds
Date First Available ‏ : ‎ December 22, 2022
Manufacturer ‏ : ‎ BTF-LIGHTING Technology Co., Limited
ASIN ‏ : ‎ B0BQW7ZWCF
Country of Origin ‏ : ‎ China

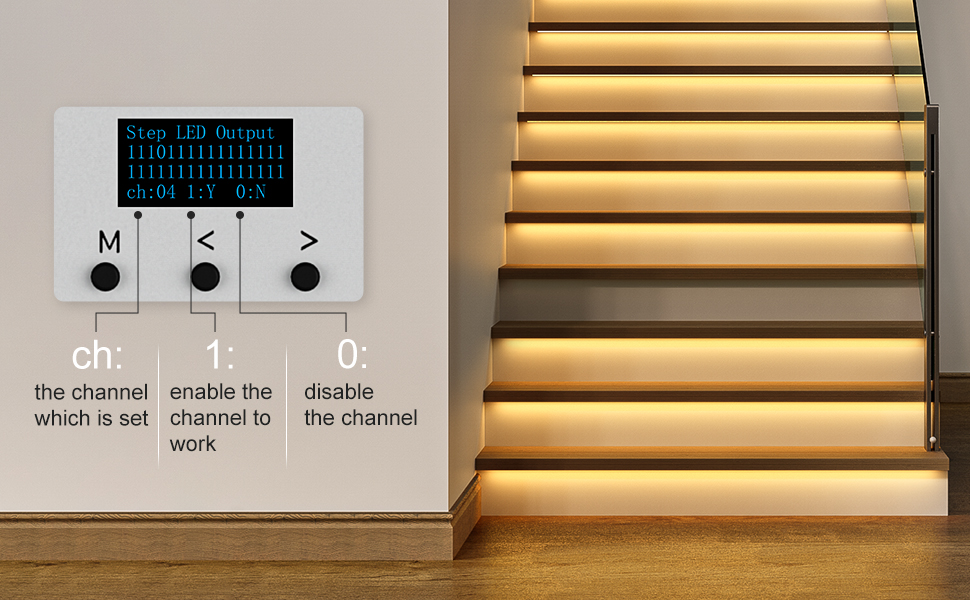

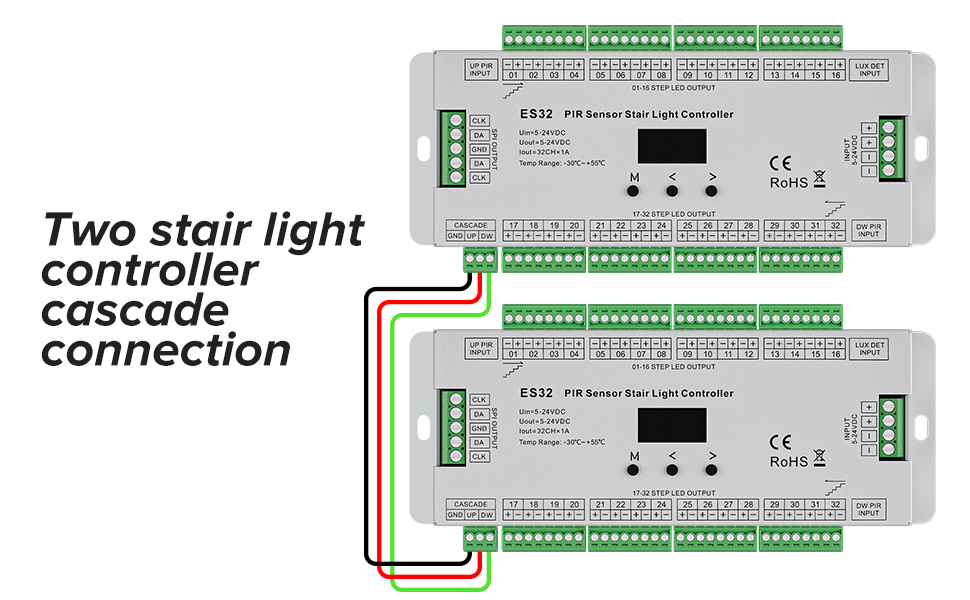

【3000K White Light Step Mode】2XPIR sensor( Passive Infra-Red sensor) up and down stairs PIR sensor, 1X Daylight sensor, Min 8 steps, Max 32 steps,8 level turn on brightness , 8 level light up speed ,each channel≤1A current，Two stair light controllers can cascade,Warm White Color 3000K,Soft light and No light spot
【Custom Stair Light Strip Length】Don’t worry about the length of the light strip not matching the stair width.Accurately measure the width of the stair and cut the light strip at the light strip mark.Simple installation, detailed instructions and corresponding videos.There are not enough parts. You can buy extra parts. The BTF-LIGHTING store sells them.
【Support IC Chip SPI LED strip】2 groups SPI(TTL) signal output, drive 27 kinds IC digital RGB LED strip like WS2811,WS2812B,WS2813,WS2815, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912,TM1829, TM1914A, GW6205, GS8206,GS8208,LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801,WS2803, P9813, SK9822.
【Support Stair Handrails Chasing Color IC Chip LED Strip】The RGB IC chip chasing light strip needs to be purchased additionally .Recommended light strip DC24V WS2811 RGB LED Strip B07X42467V or DC24V WS2811 IC FCOB Warm White LED strip B0BNDTZFDB .Let the stair handrails light up the rainbow effect.
【Z-shape digital chasing RGB IC chip LED strip light mode】The RGB IC chip chasing light strip needs to be purchased additionally.You can replace the 3000K step light strip with the WS2811 RGB IC chip LED strip .Let the whole staircase light up the rainbow effect.
【Package content】1X PIR Sensor Stair Light Controller（1X Daylight sensor（11.8in） 2X PIR sensor 2X PIR sensor extension cable（16.4FT）1X LED Controller 1XUser manual）. 3X FCOB Warm White 16.4ft LED strips. 35X DIY Connectors. 50X Fixed Clips. 3X 32FT 2 PIN cables. 1X 3Prong Power Cord. 1X DC24V10A 240W Power Adapter. 2X User Manual.Please note that there is no chasing IC chip light strip in this package .
